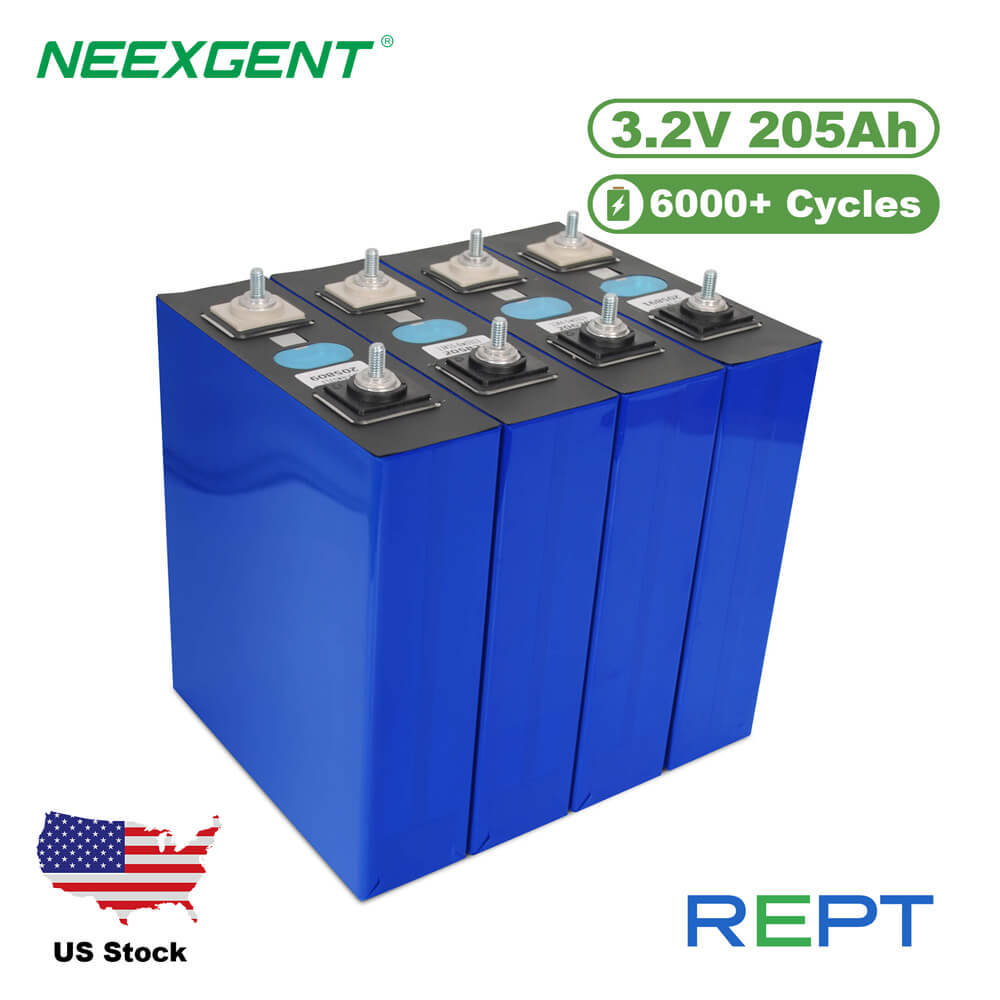

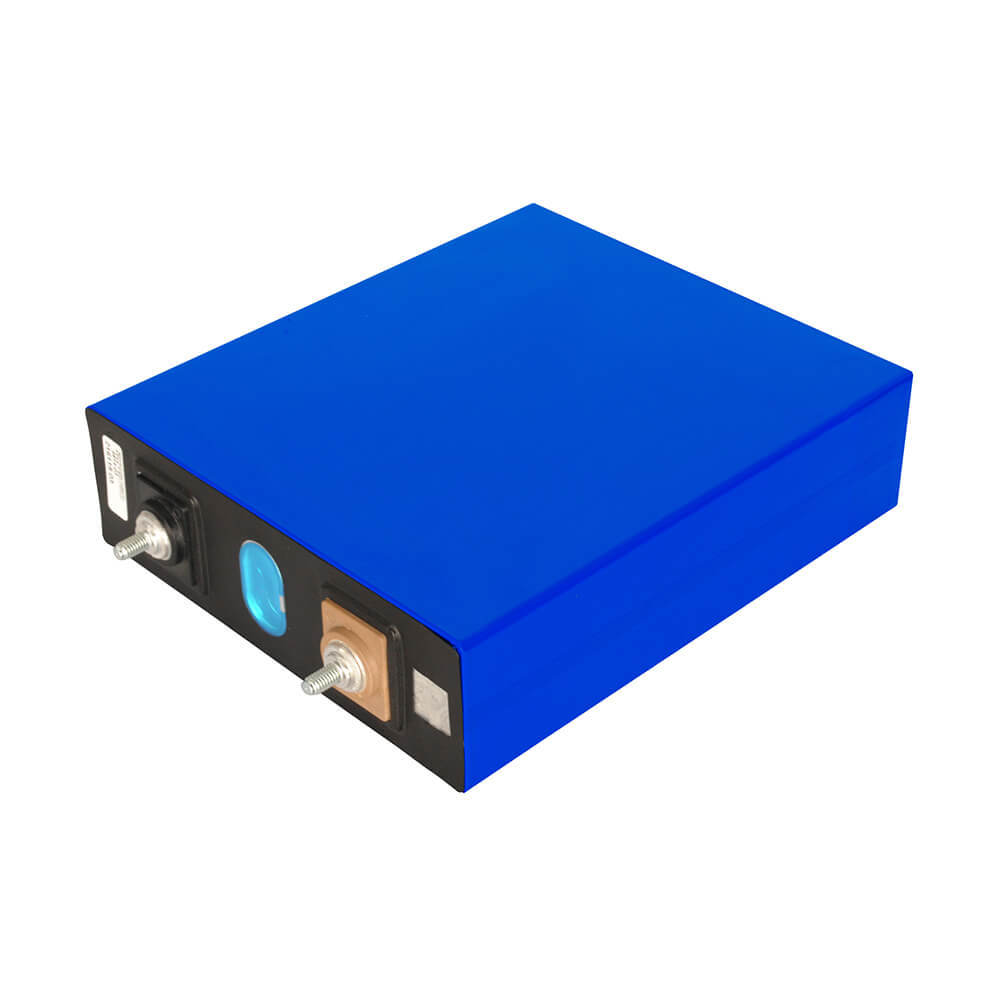

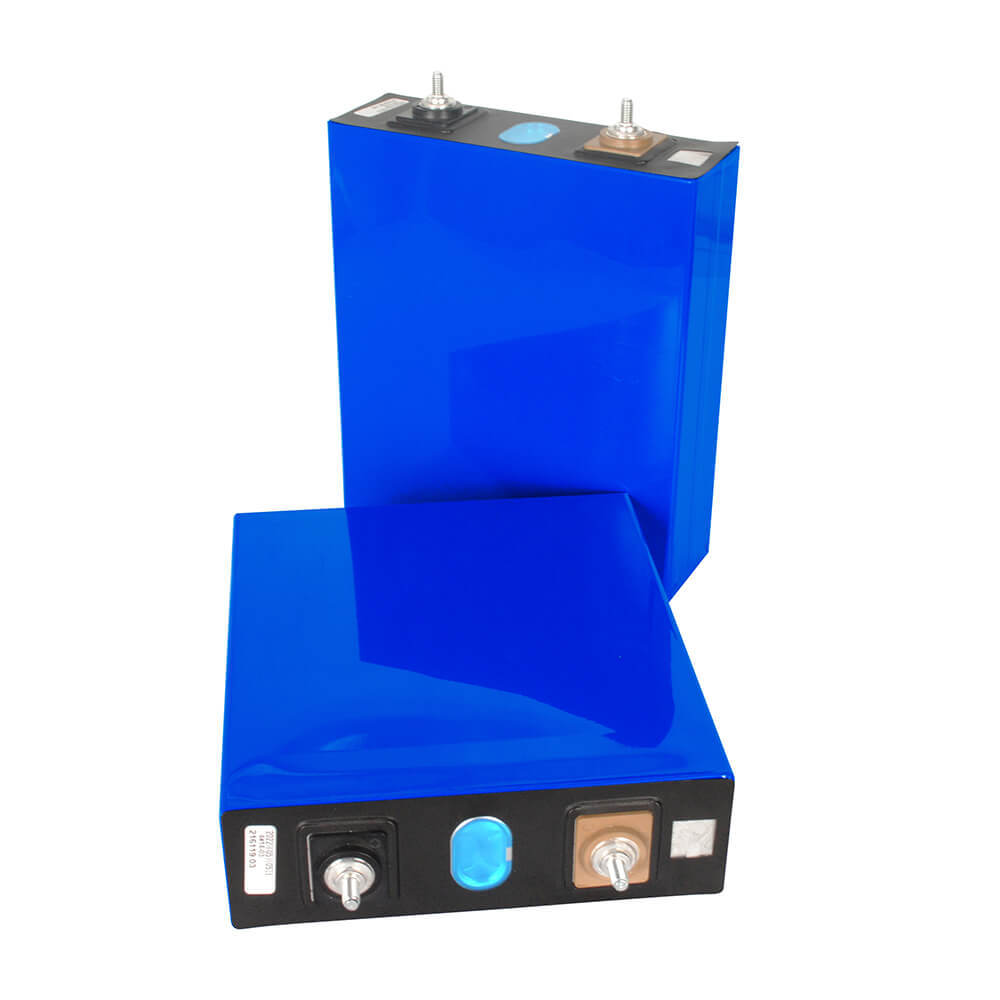

REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 205ah Battery Case

SKU:
0.0 (0)
0 Sold
$683.99 $854.99
  • Grade A battery cells designed by REPT
  • Nickel-plated copper plates for good electrical conductivity and resistant corrosion

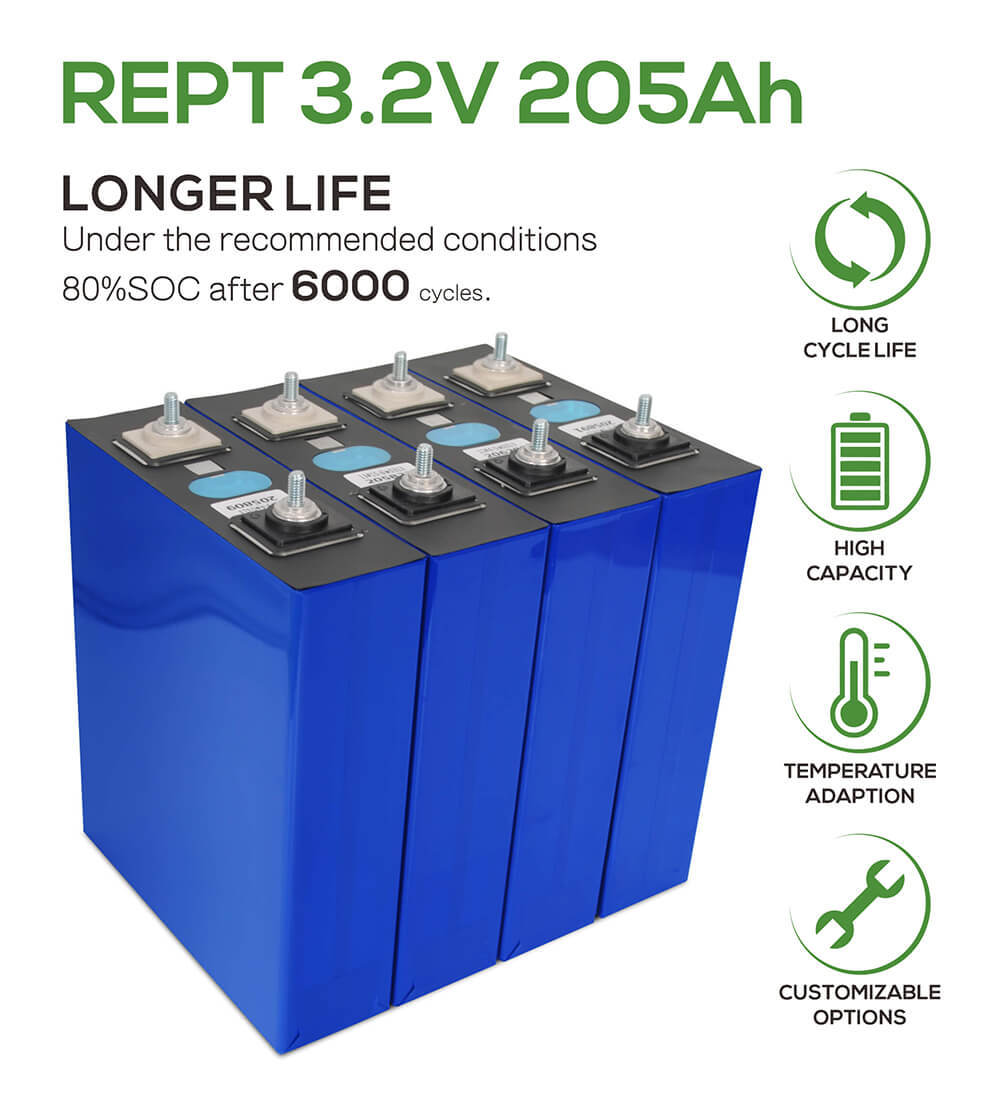

  • Over 6000 times deep cycles for an almost 10-year service-life
  • Unique QR code for each lifepo4 battery cells
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Pieces:
    4PCS
    8PCS
    16PCS
Quantity:
Add to Favorites (0)
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
1/1
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • REPT 3.2v 205ah Grade A Lifepo4 Battery Cell for Diy 280ah Battery Case
  • Description
  • Product Name: 3.2v 205ah REPT Brand Prismatic Lifepo4 Battery Cell
Model
Value
Remark
Nominal Capacity
205Ah (1C)
0.5C, indoor temperature
Nominal Voltage
3.2V
Operating voltage
2.5-3.65V
Nominal Discharging Current
102.5A

25±2℃ 5min ≥20%SOC
Maximum Continuous Discharging Current
410A

25±2℃ 5min ≥20%SOC
Maximum Discharging Current
560A
30s,SOC ≥ 30%
Nominal Charging Current
102.5A

25±2℃ 5min ≥20%SOC
Maximum Continuous Charging Current
205A

25±2℃ 5min ≥20%SOC
Maximum Charging Current
410A
10s,SOC ≤10%
Working Temperature
Charge: 0℃~55℃
Discharge: -30℃~55℃
Storage Temperature
-30℃~60℃

Standard discharge rate

0.5C

Maximum discharge rate

(continuous)

1C

Maximum discharge rate (peak)

2C

Cycles Life

＞6000 Times

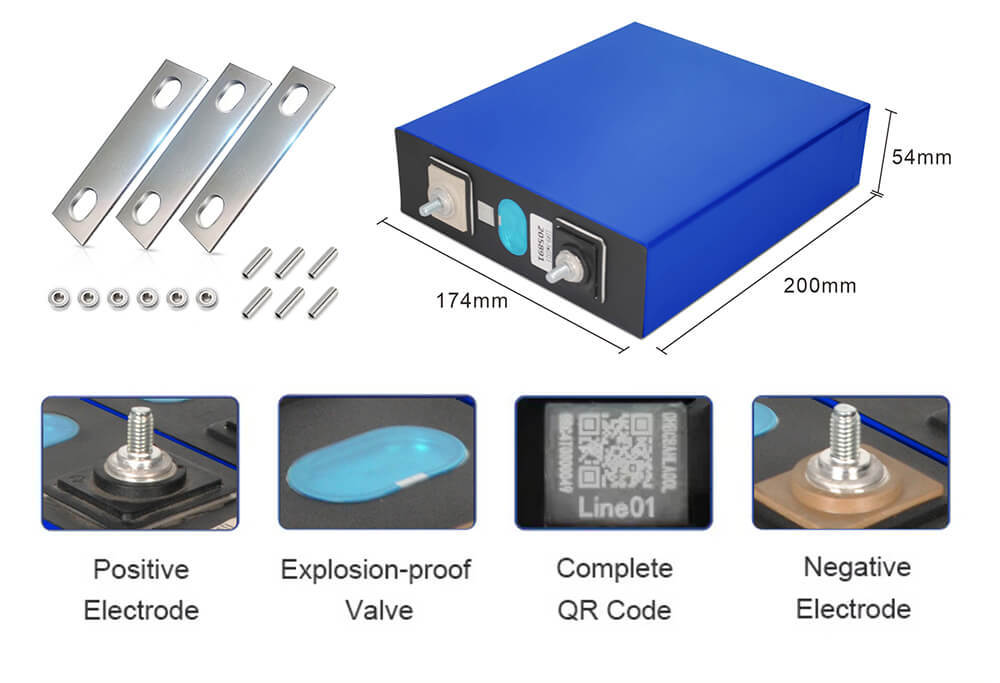

Dimension
Thickness: 53.72±0.0mm
Width: 173.90±0.50mm
Shoulder height: 200.37±0.60mm
Total height: 206.61±0.50 mm
Cathode Material
LFP
Cell Weight

4.05±0.10 Kg
Energy Density
170Wh/kg

We supply lead-acid battery boxes or lifepo4 battery boxes to assemble 12v/24v/48v 205ah battery packs:
4 batteries in parallel=12v(12.8v) 205ah battery case
8 batteries in parallel=24v(25.6v) 205ah battery case
16 batteries in parallel=48v(51.2) 205ah battery case


These 280ah battery cases are widely applied for electric motorcycles, electric forklift, electric vehicles, caravans, golf cards, electric boats and solar energy storage systems.

  • Packing Information
    Package included: Busbars, nuts and bolts(number depends on the cells purchased)
    Package condition: all prismatic battery cells are packed in a UN box.
    Batteries condition: all battery products will be tested and checked before shipment.
