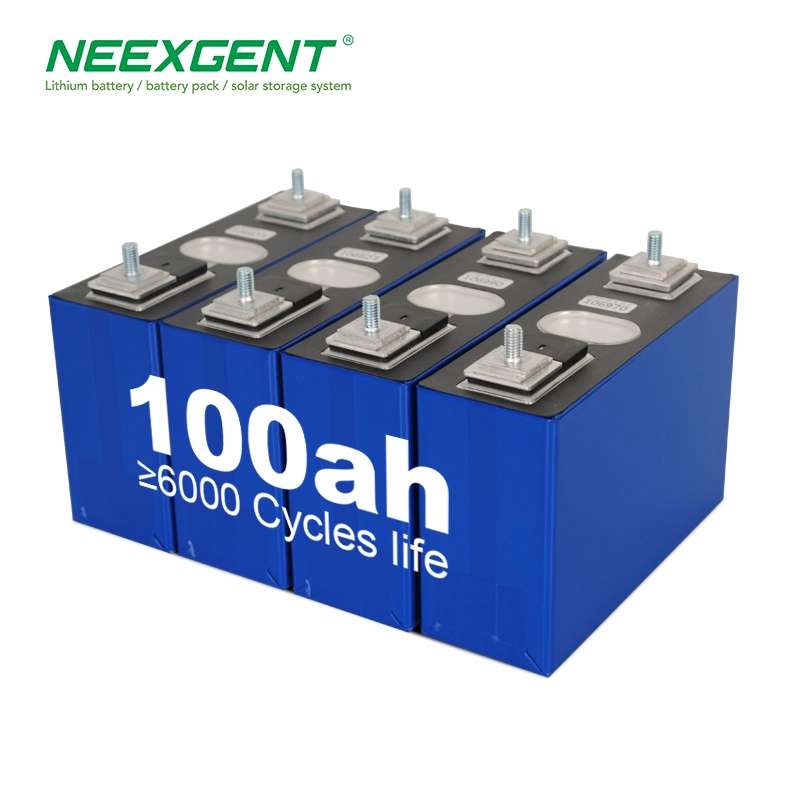

Gotion 3.2v 100ah Prismatic Lifepo4 Battery Cell for Solar Power System

SKU:
0.0 (0)
0 Sold
$335.99 $400.99
  • Grade A 3.2v rechargeable lithium iron phosphate battery produced by Gotion
  • Nickel-plated copper plates for good electrical conductivity and resistant corrosion
  • 6000 times deep cycles for an almost 10-year service-life
  • Compact design and environmental friendly
  • Unique QR code for each lifepo4 battery cells
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Pieces:
    4PCS
    8PCS
    16PCS
Quantity:
  • Gotion 3.2v 100ah Prismatic Lifepo4 Battery Cell for Solar Power System
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • Gotion 3.2v 100ah Prismatic Lifepo4 Battery Cell for Solar Power System
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
1/1
  • Gotion 3.2v 100ah Prismatic Lifepo4 Battery Cell for Solar Power System
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • CALB 3.2v 100ah Lifepo4 Battery Cells
  • Description
  • Product Name: Gotion Grade A 3.2v 100ah Prismatic Lifepo4 Battery Cell
Model No.: NXS-LP04-100
Nominal Voltage: 3.2v
Nominal Capacity: 100ah

Minimal Capacity: 100ah
Work Voltage: 2.5-3.65v
Internal Resistance(Ac. 1KHz): 0.1~0.6mΩ  Fresh Cell、30%SOC
Standard Charge: ~4h
Fast Charge: ~1h
Recommended SOC Window: SOC 10%-90%
Charging Temperature: 0~45℃
Discharging Temperature: -20~45℃
Shell Material: Plastic
Absolute Charging Voltage: Max.3.75V
Weight: 3.5kg
Battery Cell Size: L2.42* W1.67*H4.15 cm



  • Note:

    1. It is necessary to ensure that the voltage, current and temperature of the cell are monitored

    and protected when the cell is charged and discharged.

    2. Please keep the cell away from heat source, fire source, strong acid, strong alkali and other

    corrosive environment.

    3. Do not short connect or install the battery with incorrect polarity at any time.

    4. Do not mix up with cells from different models or manufacturers.

    5. Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell

    or change the external structure.

    6. Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high

    temperature and humidity environment when the battery is not used for a long time.

    7. Please wear protective devices such as rubber gloves when operating the battery.

    8. Please immediately stop using if there have leakage, smoking or damage with cell , and

    contact our company to deal with.
    9. The batteries should be stored (more than 1 month) in a clear, dry and ventilated room under ambient temperature of -20℃~25℃.

    10. If the batteries kept for a long time, it should be charged and discharged at the standard model every six months.

    11. Store the battery in the state of 10%~30% SOC (voltage scope: 3.215V~3.305V)



  • Packing Information

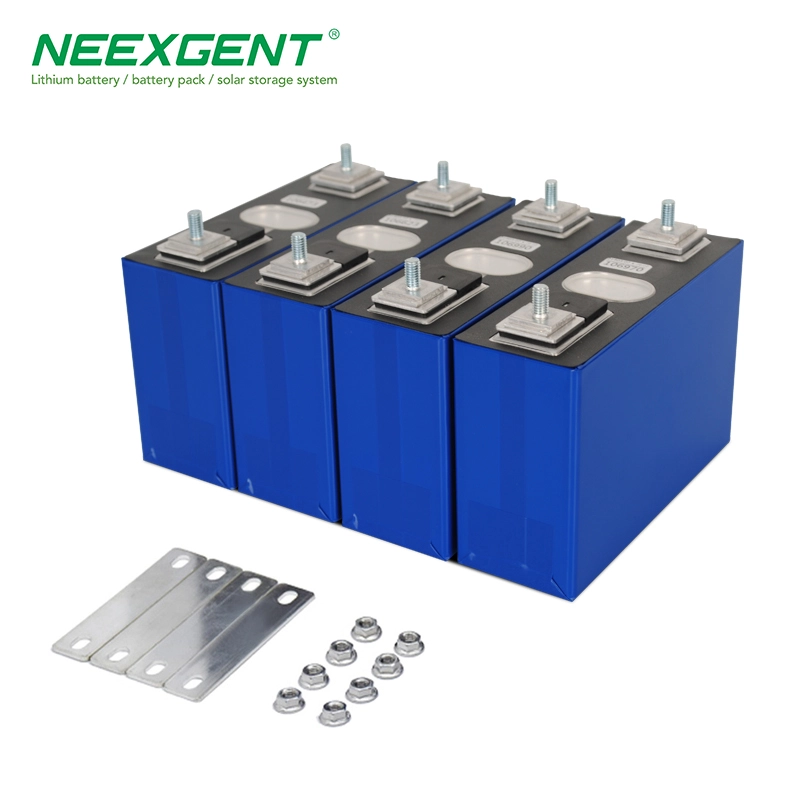

    Package included: Busbars, nuts and bolts(number depends on the cells purchased)
    Package condition: all prismatic battery cells are packed in a UN box.
    Batteries condition: all battery products will be tested and checked before shipment.
