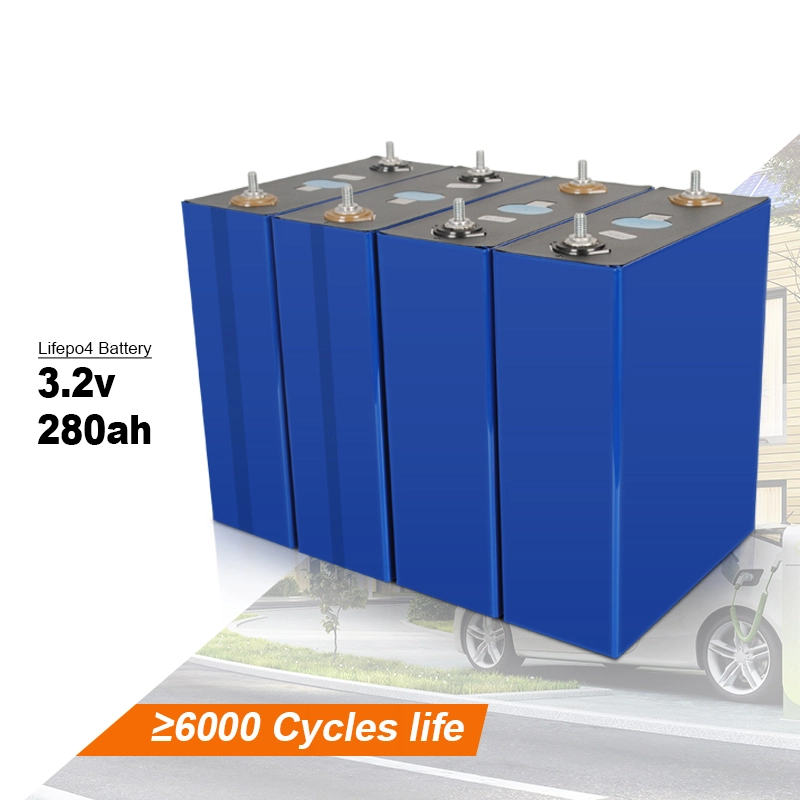

CALB L173F280A 3.2v 280ah Prismatic Lifepo4 Cells

• Product Name: CALB L173F280A - 3.2v 280ah Prismatic Lifepo4 Battery Cell

Certification: Qualified for RoHS, CE and CCC
Nominal Voltage: 3.2V
Nominal Capacity: 280Ah
Nominal Energy: 896Wh
Shell Material: Aluminium

Real capacity:>=285Ah

Minimum capacity: 2Ah

Internal impedance: 0.1~0.3mΩ

Nominal voltage: 3.2V

Dimensions(L*W*H):174*205*71.4mm

Weight:5.42±0.16kg

End-of-Discharge Voltage: 2.5V

Voltage: 3.65V

Max Continuous Discharge Current: 280A(1C)

Max Discharge Current: 560A(2C)

Cycle life (80%DOD): 6000 cycles

Charging Temperature:-5~60°C

• Packing Information

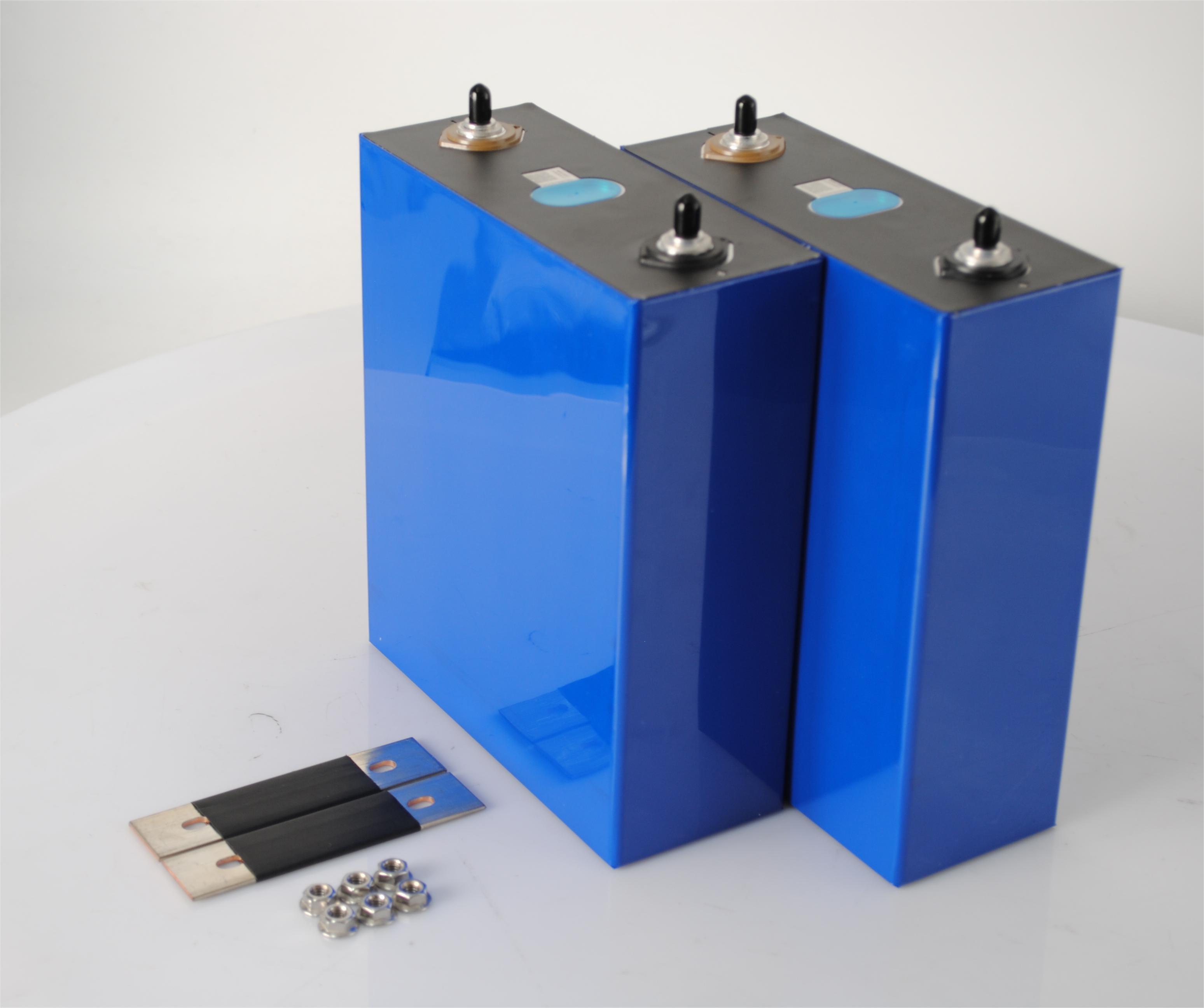

  Package included: Busbars, nuts and bolts(number depends on the cells purchased)
  Package condition: all prismatic battery cells are packed in a UN box.
  Batteries condition: all battery products will be tested and checked before shipment.
