3.2v 72ah CALB Brand New Prismatic Lifepo4 Battery Cell

Name: 3.2v 72ah CALB Brand New Prismatic Lifepo4 Battery Cell
Brand: Neexgentsolar
SKU: NXS-LP02-72
Price: 240 USD
Availability: InStock

0.0 (0)

0 Sold

$240.00 ~~$300.00~~

Grade A 3.2v rechargeable lithium iron phosphate battery produced by CALB
Nickel-plated copper plates for good electrical conductivity and resistant corrosion
6000 times deep cycles for an almost 10-year service-life
Busbars, nuts and bolts can be ordered.
Unique QR code for each lifepo4 battery cells

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Product Name: CALB Grade A 3.2v 72ah Prismatic Lifepo4 Battery Cell

Model No.: NXS-LP02-72
Nominal Voltage: 3.2v
Nominal Capacity: 72Ah
Minimal Capacity: 75Ah
Work Voltage: 2.5-3.65v
Internal Resistance(Ac. 1KHz): ≤0.5 mΩ Fresh Cell、30%SOC
Standard Charge: ~2h
Fast Charge: ~1h
Recommended SOC Window: SOC 10%-90%
Charging Temperature: 0~45℃
Discharging Temperature: -30~45℃
Shell Material: Aluminium
Absolute Charging Voltage: Max.3.8V
Cycle Life: 6000 Times
Weight: 1.9kg
Battery Cell Size: L13.6* W0.4*H23 cm

Note:

1. The storage area must be dry, as free of dust as possible and well ventilated;

2. Storage for prolonged period should be at 20–25% SOC;

3. The cells may only be stored in a designated cell room;

4. Room must be dry and ventilated;

5. Store the cells on surfaces that provide electrical insulation;

6. Electrostatic discharge must be avoided;
7. Permissible temperature range: -36℃-65℃; temperatures -20-25℃ are recommended;
Packing Information

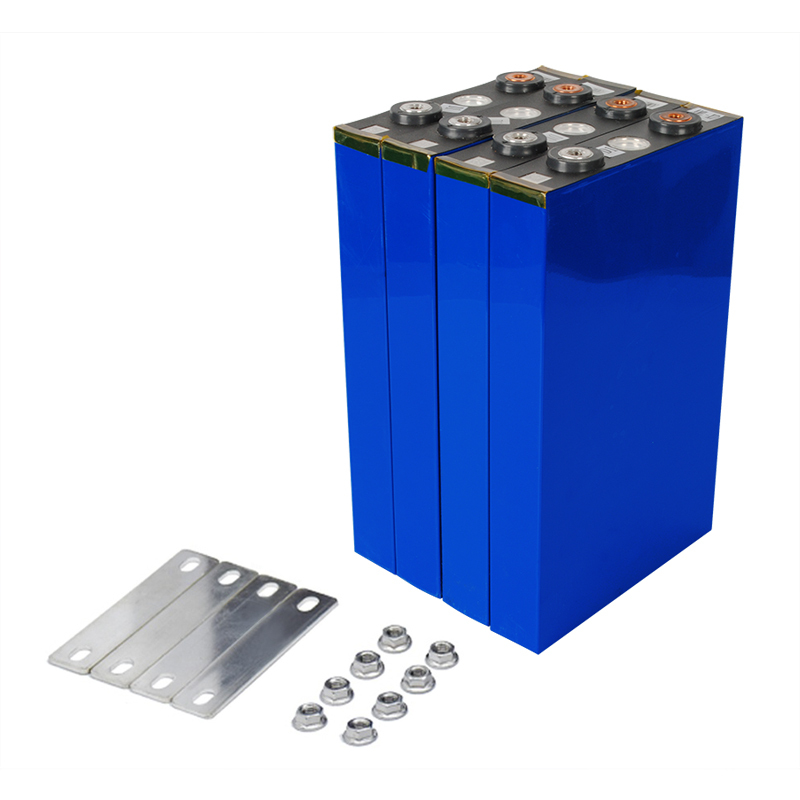

Package included: Busbars, nuts and bolts(number depends on the cells purchased)
Package condition: all prismatic battery cells are packed in a UN box.
Batteries condition: all battery products will be tested and checked before shipment.
